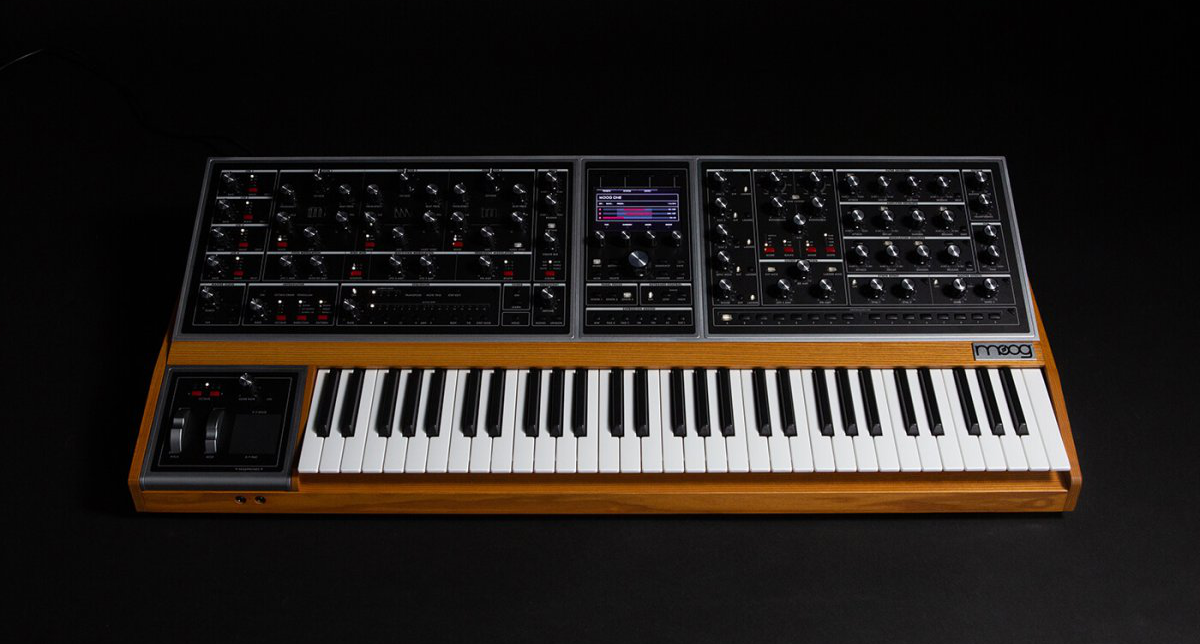

Moog One | Calibrating Moog One’s Voice Cards

THIS CALIBRATION SHOULD ONLY BE PERFORMED AT THE DIRECTION OF MOOG SERVICE.

Allocate at least 4 HOURS for the duration of this procedure. It can be left alone once the calibration routine has started.

1. Ensure the Moog One is updated to firmware version 1.5.0.


2. Let Moog One warm up for at least 45 MINUTES.


3. Connect two 1/4” audio cables (TS or TRS) from SUB OUTS L & R to LINE IN and MIC/LINE IN (trim pot position doesn’t matter).


4. Press SHIFT + SETTINGS + POLY MORE to reveal the CALIBRATION menu item in SETTINGS.


5. Navigate to SETTINGS - CALIBRATION and select VOICE CARD CALIBRATION.


6. Select RUN CALIBRATION and make sure VOICES = ALL, TUNING = ON, CALIBRATIONS = 17/17.

7. Press START.


8. On the “START VOICE CARD CALIBRATION” screen, press RUN.


9. A confirmation dialog will appear. Confirm that you want to run the calibration.


10. Once the calibration has completed, power-cycle your instrument.


11. View results by navigating to SETTINGS – CALIBRATION – VOICE CARD CALIBRATION – CALIBRATION DATA – VIEW RESULTS. If there is a calibration failure, the specific failed calibration can be selected with the encoder to rerun that calibration.

When a full Voice Card Calibration is performed, the Oscillator Compensation Calibration must be run afterwards, even if it was already performed beforehand. This can be done by navigating to SETTINGS - UTILITIES and select OCILLATOR COMPENSATION.
